RAM Mount Dual Suction Cup Universal 8" X-Grip Cradle Holder

RAM MOUNT Dual Suction Cup with Universal X-Grip for 8" Tablets

---

The RAM-B-189-UN8U consists of the following Components:

• 1 x RAM Universal X-Grip for 7-8" Tablets suitable for use with or without a case
• 1 x RAM LONG Double Clamp Arm
• 1 x RAM 2.5" Round Base with AMPs Hole Pattern and 1" Ball
• 1 x RAM Double Suction Cup Base with Universal AMPs Hole Pattern

---

RAM Universal X-Grip Cradle for 7-8" Tablets

The RAM-HOL-UN8BU consists of a spring loaded cradle and 1" rubber ball connected to the back of the base.

The X-Grip includes a device tether recommended for outdoor applications.

The cradle is compatible with handheld devices that will fit the dimensions listed below.

It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

---

Cradle Dimensions

• Minimum Width = 2.5" (Minimum Height = 7")
• Maximum Width = 5.75" (Minimum Height = 4")
• Depth = 0.875"

---

Compatible Devices & Models

• iPad Mini Generations 1, 2, 3, 4
• HEMA MAPS HX-1
• Nexus 7
• Samsung Galaxy Tab 2 7.0
• Samsung Galaxy Tab 3 7.0
• Samsung Galaxy Tab 4 7.0
• Samsung Galaxy Tab A 8.0
• Samsung Galaxy Tab S2 8.0
• Samsung Galaxy Tab S 8.4

---

RAM Double Socket Clamp Arm

• SHORT (RAM-B-201U-A) Overall Length: 6cm Socket-To-Socket Length: 4.5cm
• STANDARD (RAM-B-201U) Overall Length: 9cm Socket-To-Socket Length: 7.6cm
• LONG (RAM-B-201U-C) Overall Length: 15cm Socket-To-Socket Length: 13.5cm

---

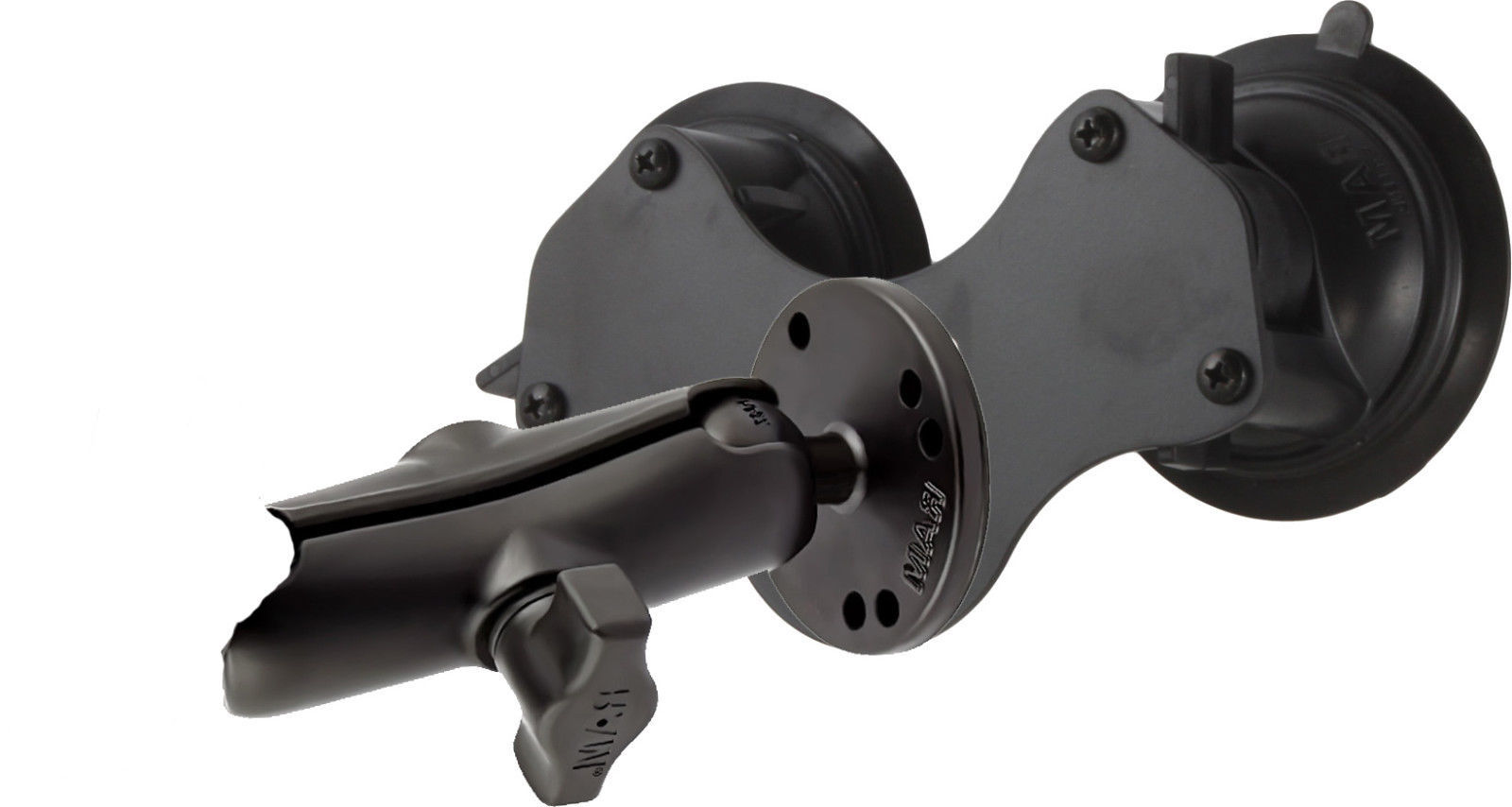

RAM Double Suction Cup Base with Universal AMPs Hole Pattern

The dual base consists of a double 3.3" twist lock suction cup base.

Included is a hole pattern that will allow attachment to all RAM bases that contain the universal AMPs hole pattern.

---

* Device shown for illustration purposes only and is NOT included in purchase.
