RAM Tab-Tite 10" Tablet Cradle Mount with Dual Suction Cup Base RAM-B-189-TAB3U

The RAM-B-189-TAB3U is a full kit that will allow you to mount a range of 10" tablets (WITH OR WITHOUT A LIGHT DUTY CASE) onto a suction-compatible surface.

---

The RAM-B-189-TAB3U consists of the following RAM (B Size) components:

• 1 x RAM Tab-Tite™ Cradle for the Apple iPad 1-4 WITH OR WITHOUT LIGHT DUTY CASE (RAM-HOL-TAB3U)
• 1 x RAM Double Clamp Arm (Length of your choice - See below)
• 2 x RAM 2.5" Round Base with AMPs Hole Pattern and 1" Ball (RAM-B-202U)
• 1 x RAM Double Suction Cup Base with Universal AMPs Hole Pattern (RAM-B-189BU)

---

RAM Tab-Tite™ Cradle for the Apple iPad 1-4 WITH OR WITHOUT LIGHT DUTY CASE (RAM-HOL-TAB3U)

The RAM-HOL-TAB3U consists of a spring loaded back plate and custom support cups. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go.

Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.

Perfect for stationary or on the go applications, the RAM-HOL-TAB3U is just what you need to get the most out of your tablet.

The included backplate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet.

Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Holder Dimensions

• Height: 8.5" to 11.125"
• Width: 6.38" to 7.75"
• Depth: 0.13" to 0.56"

---

Compatible Devices

• Apple iPad Generations 1 - 4
• Apple iPad Air Generations 1 - 2
• Almost any other 10" tablet or device - Check dimensions

May not be suitable for some other tablets or devices - please check dimensions first.

---

RAM Double Socket Clamp Arm (Select length prior to checkout);

• SHORT (RAM-B-201U-A) Overall Length: 6cm Socket-To-Socket Length: 4.5cm
• STANDARD (RAM-B-201U) Overall Length: 9cm Socket-To-Socket Length: 7.6cm
• LONG (RAM-B-201U-C) Overall Length: 15cm Socket-To-Socket Length: 13.5cm

---

RAM Double Suction Cup Base with Universal AMPs Hole Pattern (RAM-B-189BU)

The RAM-B-189BU consists of a double 3.3" twist lock suction cup base.

Included is a hole pattern that will allow attachment to all RAM bases that contain the universal AMPs hole pattern.

---

** This listing includes one double socket Clamp Arm only. Please select the length required prior to checkout.

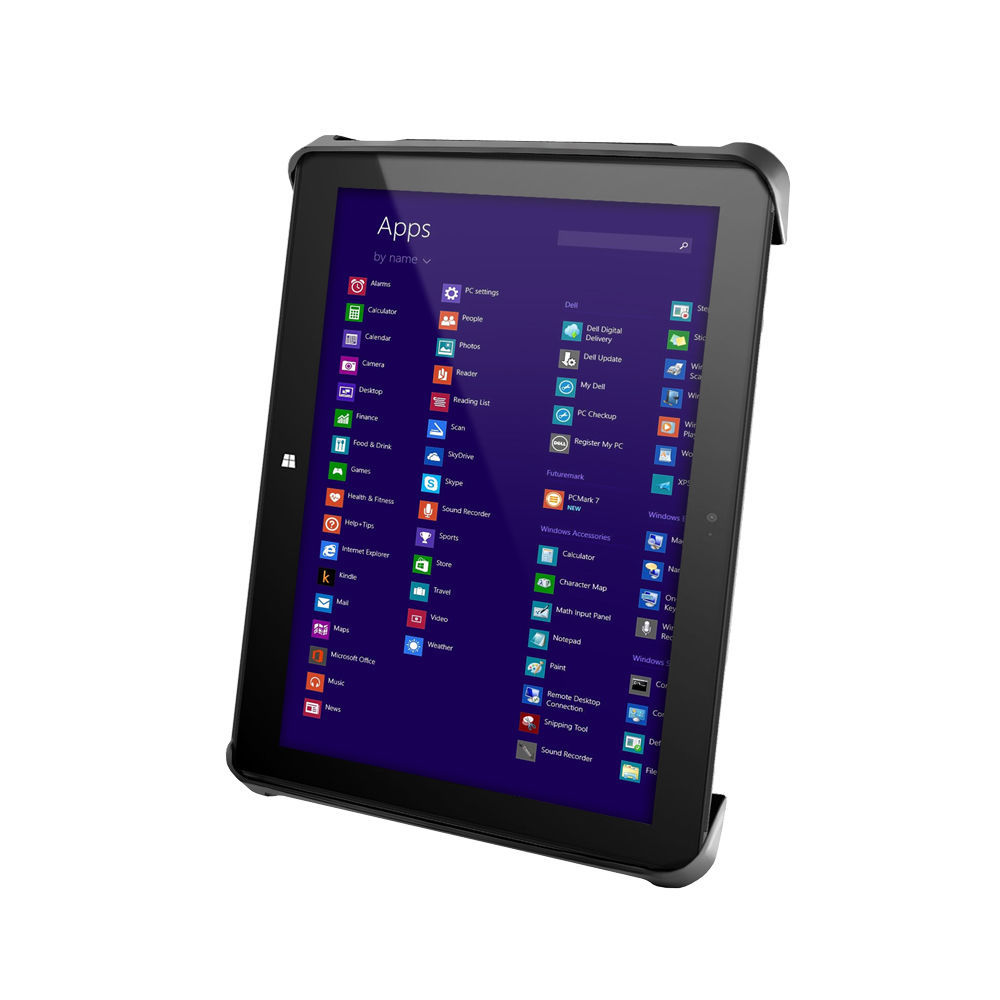

* Device shown for illustration purposes only and is not included in purchase.
